Precision Sheet Metal Forming and Bending
±0.5° Angular Accuracy for Industrial & Structural Components
We deliver high-precision sheet metal forming and bending solutions for enclosures, brackets, chassis, and structural assemblies. Equipped with advanced CNC punch press and a professional engineering team, our sheet metal forming capabilities ensure consistent quality, repeatable accuracy, and fast turnaround—from prototypes to mass production.
- Over 10 years of sheet metal fabrication experience
- ISO 9001 Quality Management System certified
- Serving industries including new energy, industrial equipment, and telecommunications enclosures
- Full in-house process control throughout production
What is Sheet Metal Forming and Bending?
Sheet metal forming and bending is a core sheet metal fabrication process that uses CNC-controlled punch press to deform metal sheets into precise angles, curves, or complex shapes without altering the material thickness. It is ideal for producing custom sheet metal parts, industrial enclosures, mounting brackets, chassis systems, and structural components with tight tolerances and excellent repeatability.
| Parameter | Capability Range |
| Bending accuracy | ±0.5° angular accuracy |
| Max. bending length | 4000 mm |
| Press brake tonnage | Up to 200T |
| Throat depth | 400 mm |
| CNC axes | 4 to 8 axes |
| Formable features | Multi-bend sequences, offsets, hemming, rolling, radius forming |
| Fastest lead time | Prototypes in 7 working days |
Materials & Finishes
Supported Materials and Finishes including:
Metallic Materials
Aluminum and aluminum alloys, stainless steel, carbon steel, copper and copper alloys (pure copper, brass, etc.)

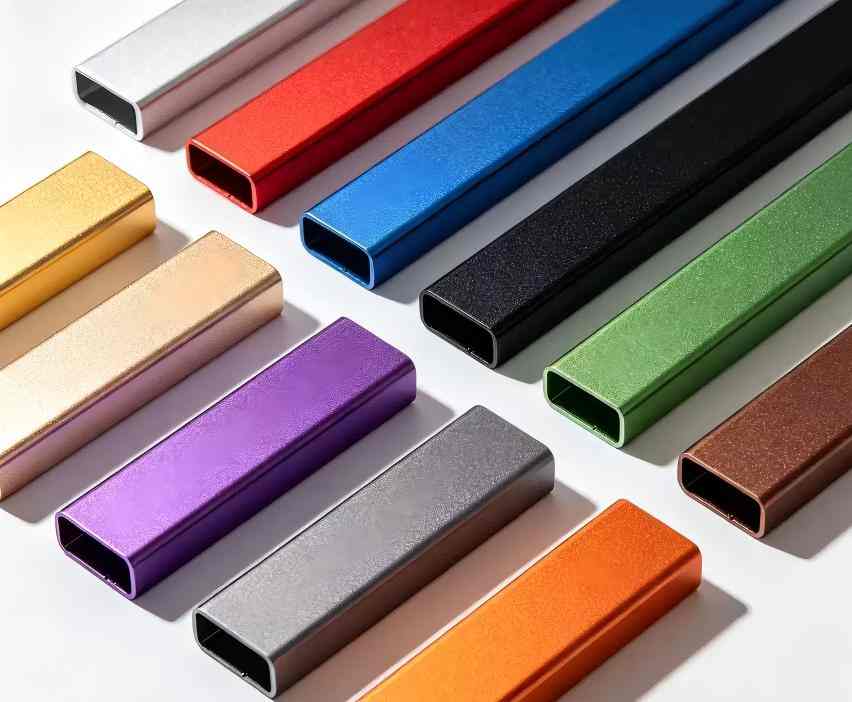

Surface Finish Options
Sandblasting, brushing, polishing, anodizing (clear/color), electroplating (zinc/nickel/chrome), powder coating (RAL color chart available), screen printing / laser marking
How Is Quality Assured? Six Stages
- Design Analysis: Drawing manufacturability review; optimization of bend sequence and blank dimensions
- Incoming Material Inspection: Verification of material grade, thickness, and surface condition
- First Article Inspection: Full dimensional measurement with documented records
- In-Process Sampling Inspection: IPQC patrol inspection to monitor angular and dimensional consistency
- Final Product Inspection: Acceptance inspection conducted in accordance with AQL standards
- Pre-Shipment Final Inspection: Accompanied by dimensional reports and surface inspection records
Core Inspection Equipment:
Case Study: Industrial Control Enclosure
Challenge
The customer requires enclosure dimensional tolerances of ±0.3 mm, bending angle accuracy of ±0.5°, and reliable electrical grounding with strong paint adhesion.
Solution
A 4-axis CNC press brake is used for single-setup forming. Blank dimensions are precisely calculated using the K-factor method to prevent cumulative dimensional deviation.
Outcome
Dimensional acceptance rate of 99.8%, angular accuracy of ±0.4°, lead time reduced to 5 days (down from 8 days).
FAQs About Sheet Metal Forming and Bending
Collaboration Process & Trust Building
✅Free Assessment | ✅Fast Response | ✅Honest Feedback
Submit Drawings (DWG / DXF / STEP)
Engineer Review & Quotation (Within 12 hours)
Order Confirmation & Production Scheduling
Manufacturing & Quality Inspection
Packaging & Shipment
Upload Your Drawings to Start the Evaluation
