Precision Where It Counts

42CrMo is a chromium-molybdenum alloy steel chosen for situations where plain carbon steel doesn’t offer enough mechanical reserve.

Its through-hardening capability is a key advantage: unlike surface-hardening treatments that only harden the outer layer, 42CrMo responds to heat treatment through its full cross-section, delivering consistent toughness and strength across the entire part rather than just at the skin.

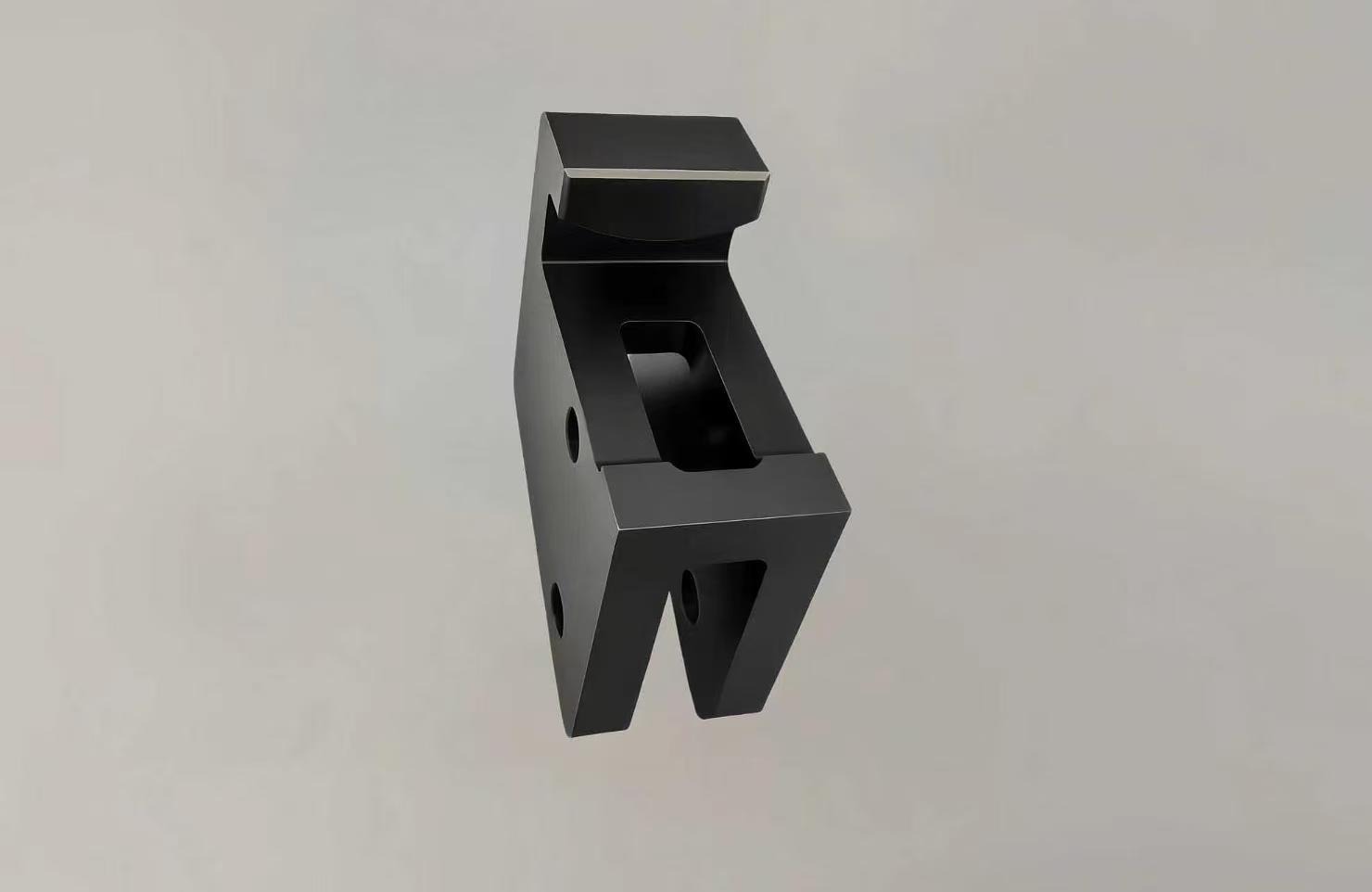

For this part, the critical quality requirements center on hole positions and the distances between them, not just individual hole sizes.

Feature-to-feature positional accuracy directly affects how the part fits and functions within its assembly. Small errors in hole location can translate into binding, misalignment, or premature wear once the mechanism is assembled.

CNC machining addresses this by keeping all critical features within the same coordinate system and machining them in a controlled sequence without unnecessary repositioning. That approach minimizes the accumulation of small setup errors and delivers the kind of consistent positional accuracy that tight assemblies rely on.

Black Oxide on 42CrMo: Fit for Purpose

Black oxide is a well-suited finishing choice for a precision-machined 42CrMo component for several practical reasons.

1. It doesn’t affect dimensions.

The conversion coating adds only a micron-level thickness. Machined holes, mating surfaces, and toleranced features are all preserved exactly as cut.

2. It protects in service.

When sealed with oil after treatment, black oxide provides reliable protection against moisture and rust in typical storage and operating environments.

3. It helps during inspection.

The matte black surface makes it easy to spot surface damage. Scratches, nicks, and handling marks show up clearly against the dark background, which simplifies visual quality checks before the part goes into assembly.

Feature	Detail
Material	42CrMo alloy steel
Coating type	Chemical conversion (black oxide / magnetite)
Coating thickness	Typically 1-2 microns (dimensionally negligible)
Post-treatment	Oil sealed for enhanced corrosion resistance
Appearance	Uniform matte black
