AL5052 is one of the best-forming grades in the aluminum-magnesium alloy family, well suited to stamping and bending operations while offering good corrosion resistance and moderate strength. For a bracket whose primary manufacturing process is press brake bending, 5052’s higher elongation compared to 6061 is a practical advantage — it bends cleanly without cracking at the bend radius, even through multiple sequential bends.

The Challenge: Accuracy After Multi-Bend Cantilever Forming

The finished part is a three-dimensional bent structure, and the cantilevered sections formed after bending are narrow and relatively long — low cross-sectional moment of inertia, limited overall stiffness. In that structural context, multiple sequential bends create three overlapping accuracy problems:

• Springback: Aluminum plate springs back elastically after the press brake releases. The actual angle is larger than the die angle, requiring a compensated overbend for every single step
• Overall twist: If the bend sequence or direction isn’t carefully planned, cumulative angular offsets across multiple bends can cause the whole bracket to end up twisted rather than square
• Hole-to-bend-datum positional accuracy: Irregular holes cut before bending shift relative to their nominal positions once the plate is formed, which directly affects how accurately the bracket locates the components it’s designed to hold

How It’s Managed

Stage	Approach
Laser cutting	Full outer contour, all irregular holes, and all clearance slots cut in a single laser pass — no repositioning, no accumulated positional error between features
Bend sequencing	Step-by-step bending with dedicated tooling, in a calculated order that prevents later bends from affecting already-completed ones; each stage verified before moving to the next
Springback compensation	Bend angles are pre-compensated to account for the elastic recovery of the aluminum, targeting the actual finished angle rather than the die angle
Post-bend straightening	Final inspection and correction pass to remove any residual twist from the cumulative effect of multiple bends

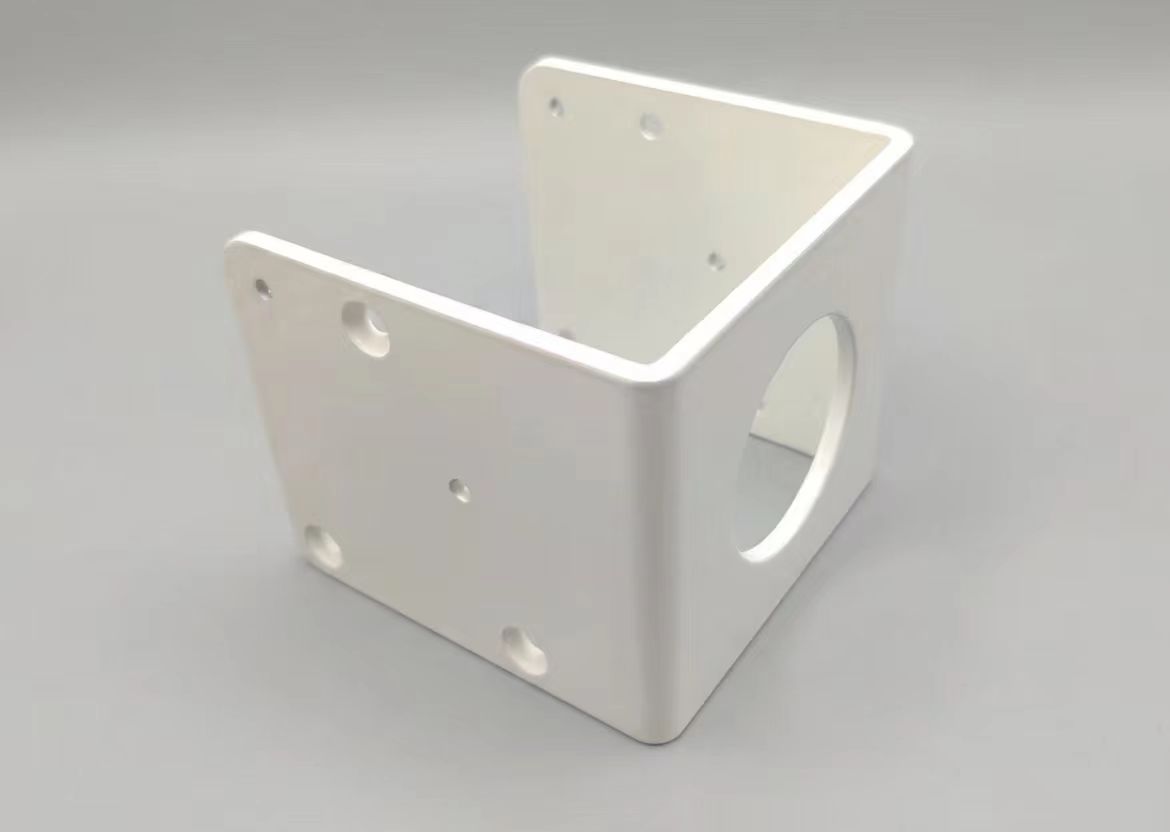

White Powder Coating and Applications

Powder coating is applied after bending and straightening are complete, covering the full surface including bend radii and hole edges uniformly. The white finish gives the bracket a clean appearance in externally visible or semi-exposed positions, and provides reliable corrosion protection in typical equipment environments.

Typical applications for this type of small formed bracket:

• Fine-adjustment mounting brackets for inspection and measurement equipment
• Camera mounting brackets for machine vision inspection systems
• Photoelectric sensor mounting frames
• Small actuator support brackets at automation workstations
