You get a batch of investment castings off the line and something seems amiss. Maybe there are tiny pits somewhere on the surface. Or a seam that didn’t fully close. Or a texture that is rougher than it should be. These are casting surface defects. They are more common than most people think, even in well-run manufacturing facilities.
Surface quality is important for precision castings since the outer surface is often the first to be inspected, machined or put into service. Knowing the causes of these problems and how to detect them early can save a lot of rework down the road.
This article discusses the most prevalent forms of precision casting flaws, their origin in the production process, the ways to prevent them and when it is actually required to take remedial measures.
What Are Surface Defects in Precision Castings?
A surface defect is an imperfection of the exterior surface of a casting that is not in conformance with the specified shape, texture or finish. In investment casting, where tight tolerances and surface cleanliness directly impact part performance, even slight defects are worth investigating.
The first step of any preventive effort is to know how to detect casting defects. Here is a table of the most frequent kinds you will likely encounter:
| Defect Type | Visual Appearance | Primary Cause | Process Improvement |
| Pinholes / Gas Porosity | Tiny round cavities on the outer skin | Entrapped gas or wet mold shell | Improve shell drying; optimize degassing |
| Cold Shuts | Unfused seams or incomplete surface contours | Low pouring temperature or slow pour rate | Increase pour speed and metal temperature |
| Ceramic Inclusions | Irregular metallic projections or embedded ceramic grains | Shell erosion or poor slurry coating | Upgrade slurry strength; clean mold before pouring |
| Rough Surface | Coarse texture lacking smooth resolution | Coarse primary slurry refractory or metal-mold reaction | Refine primary slurry mesh size; control melt atmosphere |
Why Surface Flaws Matter in Precision Components?
It is tempting to regard a rough or pitted surface as a cosmetic problem only. In reality, casting surface defects often have less visible, but no less real, downstream effects.
- Structural Risks: Stress concentration locations are surface microcracks or embedded inclusions. These are the regions where fatigue cracks tend to start under repetitive pressure.
- Machining Hassles: Porosity and hard ceramic inclusions cause the cutting tools to wear faster, scrap rates are higher, and secondary finishing processes take more time and expense.
- Functional Integrity: Poor surface quality might affect sealing performance, interrupt fluid flow routes or diminish adhesion of protective coatings in the final application.
This is not a small worry for parts utilized in aerospace, medical devices or automotive systems. They have a direct bearing on product reliability and safety.
The Most Common Causes Behind Surface Defects
Surface flaws rarely arise from a single reason. These are frequently caused by difficulties at various steps of the investment casting process.
1. Mold and Pattern Quality
The wax pattern is the standard for all subsequent operations. Any surface defect on the wax, such as flow lines from injection, contamination or tooling wear, will be faithfully recreated on the final casting.
Other than the quality of the pattern, the ceramic shell itself is a major variable. Poor shell strength or cracking after drying can cause rough or uneven spots on the surface, allowing metal to penetrate the mold material. Such problems are further compounded by inconsistent slurry application and poor mold cleanup.

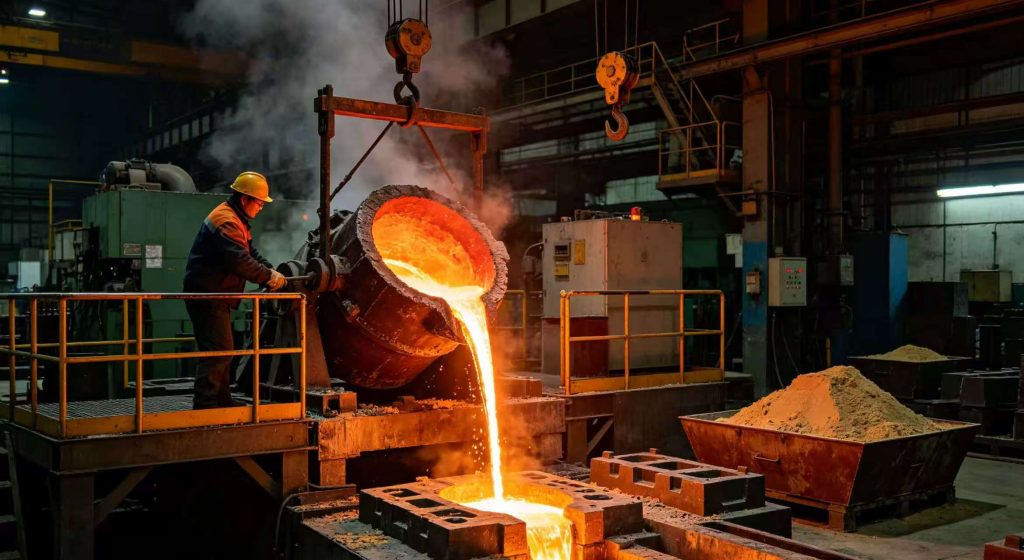

2. Pouring Process Problems
It turns out that nailing the pour is more subtle than it sounds. If the metal temperature is too low at pouring, not all portions of the mold may be filled before the metal begins to solidify. This can result in cold shuts or misruns. Excessive turbulence during pouring may trap air and increase oxide formation. Too slow and it will be cool before it’s finished.
The correct temperature range and flow velocity depend on the alloy, wall thickness and mold shape. Small deviations from the parameters are visible on the casting surface. This is the kind of process expertise that takes several production runs to create, not simply a specification sheet.
3. Material and Process Control
Contaminated molten metal is an often overlooked, but common, source of investment casting defects. Moisture absorbed by charge materials, slag remaining in the crucible, and oxidized metal from previous heats can cause inclusions in or near the casting surface.
Metal flow and solidification will be affected by measurement errors or batch variation that lead to an incorrect alloy composition. Good melt practices, including degassing and slag removal before pouring, can greatly improve surface quality.
4. Cooling and Solidification Issues
Thermal stresses are set up in the solidification phase and must be resisted by the casting. Localized shrinkage could draw the surface inward, resulting in depressions or sink marks, if certain portions are cooling unevenly. In more severe cases the heat gradient penetrates faster than the material can accommodate and surface cracking or hot tearing near the casting skin occurs. These can be especially frustrating as they often only become visible once the part has cooled and been cleaned well.
How to Prevent Surface Defects?
Understanding what causes surface defects is only the first step. Preventing them requires consistent process control throughout production. The best way to manage this in our experience is to address each stage rather than seeking for a single silver bullet.
- Improve mold and shell quality: Use higher-strength slurry formulations for primary layers, allow adequate drying time between coats, and inspect wax patterns for surface flaws before shell building begins.
- Control pouring parameters: Define and hold precise temperature windows for each alloy, use gating systems designed to reduce turbulence, and keep pour speed consistent.
- Maintain molten metal quality: Degas the melt thoroughly before pouring, use clean charge materials, and avoid recycling heavily oxidized returns without proper treatment.
- Control cooling and solidification: Design risers and chills to promote directional solidification and to minimize thermal gradients, especially in thick portions.
- Use inspection and process feedback: Inspect surfaces after shakeout and document defect patterns across batches. Recurring defects in the same location often point to a specific process variable that needs adjustment.
Which Surface Defects Usually Require Action?
Not every surface imperfection means the casting must be rejected. Acceptance depends on customer specifications, applicable industry standards, and the intended service conditions, not on appearance alone.
A slight texture difference that is completely acceptable on an internal structural bracket might be a rejection criterion for a hydraulic valve body or a medical implant. This is why it is important to define acceptance criteria upfront, ideally referencing standards such as those published by ASTM International, which provide documented criteria for casting surface quality across a range of materials and applications.
| Surface Condition | Typical Impact | Common Action |
| Slight surface roughness | Appearance only | Leave as-is or polish |
| Small isolated pits | Depends on application | Evaluate before machining |
| Deep surface cracks | Structural integrity risk | Reject or repair if permitted |
| Extensive metal penetration | Machining difficulty | Rework or reject |
| Heavy oxide or inclusions | May affect performance | Further inspection required |
Final Thoughts
Surface flaws in quality castings are seldom random. They are associated with specific conditions in the mold, the pour, the material or the cooling stage. When the root cause is understood they can be controlled. The trick is to have the process expertise and the inspection discipline to spot problems early.
